Parafuso de esfera tipo flange série SFI

Lar · Produtos · Parafuso de esfera · Parafuso de esfera tipo flange série SFI
Parafuso de esfera tipo flange série SFI

Parafuso de esfera tipo flange série SFI

O parafuso esférico da série SFI tipo flange é um componente de transmissão de precisão resistente e de alto desempenho. Ele normalmente apresenta design de pista superior, estrutura de pré-carga e tecnologia de vedação, proporcionando maior capacidade de carga, rigidez e operação mais suave do que as séries padrão do tipo flange em aplicações como máquinas-ferramentas CNC, máquinas de moldagem por injeção e equipamentos de automação para serviços pesados.

Tecnologia

O posicionamento central da série SFI é "melhoria de desempenho além do padrão" Ele supera a série básica de flanges em aspectos-chave de desempenho, proporcionando garantia para condições de trabalho mais exigentes.

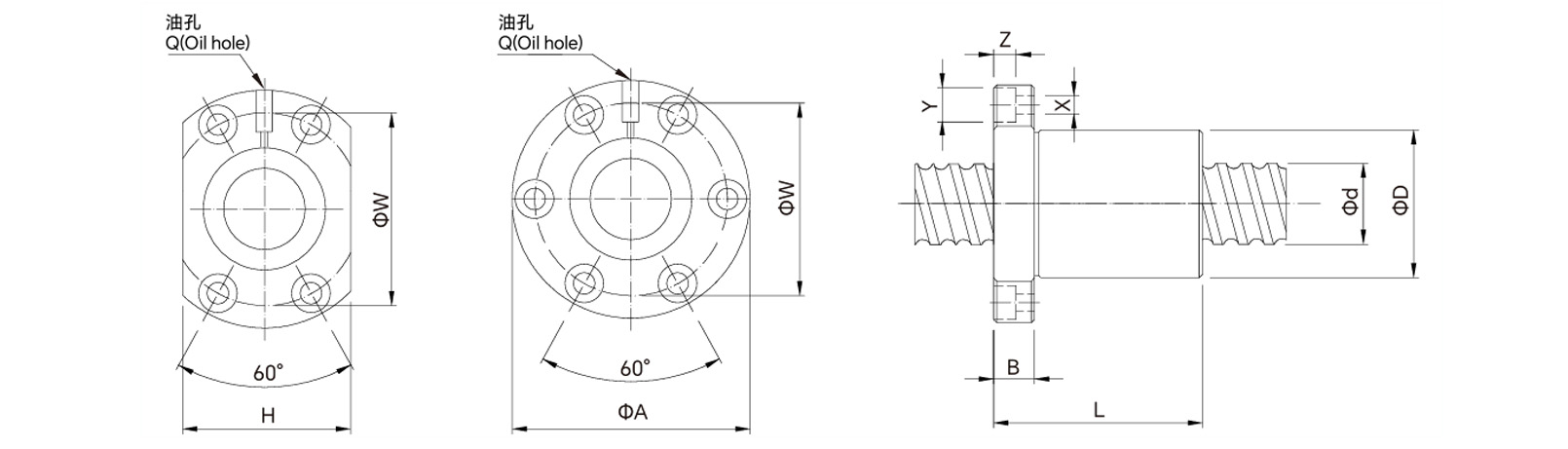

Dimensões Características Série SFI (tipo flange de alto desempenho) Tipo de flange padrão (série SFU)
Posicionamento central Resistente, alta rigidez, vida útil prolongada, adequado para condições operacionais exigentes. Econômico e versátil, atendendo à maioria dos requisitos convencionais.
Capacidade de carga e rigidez Aprimorado. Normalmente incorpora esferas maiores, ângulos de contato de pista otimizados ou projetos de pré-carga de porca dupla, proporcionando rigidez axial significativamente melhorada. Adequado para aplicações de carga geral.
Suavidade e precisão operacional Superior. Processos de fabricação otimizados e controle de pré-carga garantem movimentos mais suaves e retenção de precisão mais estável. Operação suave com precisão em conformidade com os padrões.
Selagem e Proteção Normalmente equipado com vedações de qualidade superior (por exemplo, vedações multilábios) como padrão, oferecendo resistência superior à poeira e à água para proteger as pistas internas. Vedação contra poeira básica de ajuste padrão.
Vida útil esperada Mais longo. Em condições de carga equivalentes, materiais e design superiores normalmente proporcionam uma vida útil calculada mais longa. Vida útil padrão.
Posicionamento de custos Mais alto, representando um investimento em desempenho. Econômico com alta relação custo-benefício.

Design de melhoria de desempenho
Pré-carga aprimorada: geralmente usa métodos de pré-carga de porca dupla ou pré-carga deslocada para eliminar efetivamente a folga axial e melhorar significativamente a rigidez do sistema, adequados para aplicações que exigem alta velocidade de resposta e alta precisão de posicionamento.
Pista de corrida otimizada: o perfil da pista de corrida e a rugosidade da superfície são otimizados para reduzir o ruído, minimizar o desgaste e melhorar a eficiência do transporte de carga.
Níveis de precisão: normalmente oferece vários graus de precisão, como C5 e C7, com alguns modelos tendo reservas de precisão maiores do que a série padrão para atender aos requisitos exigentes de máquinas-ferramentas e outras aplicações.
Especificações e compatibilidade: As dimensões de montagem do flange da porca podem não ser exatamente as mesmas da série SFU padrão; atenção especial é necessária durante a seleção. Uma ampla gama de diâmetros de eixo está disponível, do pequeno ao grande.

Cenários de Aplicação
O parafuso esférico da série Flange tipo SFI foi projetado para aplicações pesadas ou de precisão com maiores demandas de desempenho, confiabilidade e vida útil:
Máquinas-ferramentas industriais e equipamentos pesados: eixos de alimentação de máquinas-ferramentas CNC (centros de usinagem, tornos), grandes prensas de estampagem e unidades de injeção de máquinas de moldagem por injeção.
Automação de alta precisão: eixos de movimento pesados de centros de montagem de precisão e equipamentos de teste automatizados, e o trilho de aterramento do sétimo eixo dos robôs.
Energia e Transporte: Sistemas de controle de passo de geração de energia eólica e componentes de transmissão para transporte ferroviário.
Qualquer aplicação que exija desempenho de transmissão mais forte e durável do que a série padrão.

O parafuso esférico da série Flange tipo SFI é uma solução de engenharia para aplicações industriais exigentes. Não é apenas um componente de transmissão, mas um investimento fundamental que visa melhorar os limites gerais de desempenho e a confiabilidade operacional de longo prazo de toda a máquina. Escolher a série SFI significa selecionar maior potência, precisão mais estável e confiabilidade mais duradoura para seu equipamento principal, criando assim uma sólida vantagem de desempenho na acirrada competição do mercado.

Parâmetros

Modeeuo no. d l Sim Dimensão Classificação de carga Rigidez Peso
D Um B L O H x Y Z Q n Ca(kgf) Coa(kgf) Kgf/um Kg
SFI1604-4 16 4 2.381 30 49 10 45 39 34 4.5 8 4.5 M6 1x4 973 2406 32 0.246
SFI1605-4 5 3.175 30 49 10 50 39 34 4.5 8 4.5 M6 1x4 1380 3052 33 0.220
SFI1610-3 10 3.175 34 58 10 57 45 34 5.5 9.5 5.5 M6 1x3 1103 2401 27 0.382
SFI2004-4 20 4 2.381 34 57 11 46 45 40 5.5 9.5 5.5 M6 1x4 1066 2987 37 0.312
SFI2005-4 5 3.175 34 57 11 51 45 40 5.5 9.5 5.5 M6 1x4 1551 3875 39 0.308
SFI2504-4 25 4 2.381 40 63 11 46 51 46 5.5 9.5 5.5 M6 1x4 1180 3795 43 0.386
SFI2505-4 5 3.175 40 63 11 51 51 46 5.5 9.5 5.5 M8 1x4 1724 4904 45 0.396
SFI2510-4 10 4.762 46 72 12 85 58 52 6.5 11 6.5 M6 1x4 2954 7295 51 0.802
SFI3204-4 32 4 2.381 46 72 12 47 58 52 6.5 11 6.5 M6 1x4 1296 4838 49 0.46
SFI3205-4 5 3.175 46 72 12 52 58 52 6.5 11 6.5 M8 1x4 1922 6343 52 0.472
SFI3210-4 10 6.35 54 88 15 90 70 62 9 14 8.5 M8 1x4 4805 12208 62 1.14
SFI4005-4 40 5 3.175 56 90 15 55 72 64 9 14 8.5 M8 1x4 2110 7988 59 0.840
SFI4010-4 10 6.35 62 104 18 93 82 70 11 17.5 11 M8 1x4 5399 15500 72 1.548
SFI5010-4 50 10 6.35 72 114 18 93 92 82 11 17.5 11 M8 1x4 6004 19614 83 1.924
SFI6310-4 63 10 6.35 85 131 22 98 107 95 14 20 13 M8 1x4 6719 25358 95 2.674
SFI8010 4 80 10 6.35 105 150 22 98 127 115 14 20 13 M8 1x4 7346 31953 109 3.90

Desenhos


Suporta seleção de combinação de produtos

Production Capacity

Cyclone Milling Machines

LWN160-6000mm Leistritz Cyclone milling machines imported directly from
Germany, the ball screw shaft precision can be C3, C5, and C7 the max length
can be 7000mm

Rolled Thread CNC Machines

PR-40CNC Profiroll rolled thread ball screw machines imported directly from
Germany the ball screw shaft precision can be C5, C7 -C10

Rolled Thread CNC Machines

ST-20.2 and ST-347.7 rolled thread ball screw machines from TaiWan.
The ball screw shaft precision can be C7 - C10

Ball Screw Assembly Workshop

We conduct nut assembly in a constant temperature workshop,  all workers
having decades of work experience and zero clearance between the screw
and nut.

Ball Screw Assembly Workshop

One ball screw shaft matches one ball screw nut. Because each ball screw
shaft has a very tiny different tolerance. There are dozens of different
ball sizes for different screw shaft.
Our ball screw shaft and nut can be interchanged with the Taiwan
TBI ball screw shaft and nut very well.

Model Code Explanation

①Nominal Model
S F I
S: Single nut D: Double nut O: Off set double nut F: With flange C: Without flange NI: NI type nut
U
NU: NU type nut A: A type nut (A solution for slide table) Y: Y type nut U: DIN type nut K: K type nut S: S type nut (A solution for slide table)
②Threading Direction ③Nominal Diameter ④Lead
L: Left R: Right Unit:mm
⑤Number of Turns (Turn·Row)
Turn:T:1 A:1.5(or 1.7/1.8) B:2.5/2.8 C:3.5 D:4.8 ex:(2.5x2 =B2)
⑥Flange Type
N: Not cutting S: Single cutting D: Double cutting
⑦Product Code ⑧Accuracy Grade ⑨Overall Length of Shaft
G: Grind F: Rolled C0, C1, C2, C3, C5, C7, C10 Unit: mm

Axial Clearance and Preload Value Number of Nut
PO, P1, P2, P3, P4 (Leave blank if only one nut is required)
Ex:Install two nuts on a shaft B2
Nut Surface Treatment Shaft Surface Treatment
S: Standard S: Standard
B1: Black Oxidation B1: Black Oxidation
N1: Hard Chrome Plating N1: Hard Chrome Plating
N3: ickel Plating N3: Nickel Plating

Design Accuracy

1-1-1 Lead/Travel Accuracy

According to the standard of JIS,we classified our lead accuracy through E,e,e3oo and e2m four main regulations.As figure 1.1.1~1.1.3 shown in below, all the definition and tolerance are specified.To test the accumulated travel deviations for grade C7 and C10, the tolerance wll be chosen in random 30omm of useful length and evaluated if it is qualified with the e300 table of 1.1.3.

Fig 1.1.1 Diagram of Lead Accuracy

Terms Reference Definition Allowable
Travel Compensation T Travel compensation is the deduction between specified and nominal travel in the useful travel.
A slightly smaller value compared with nominal travel is often selected by customer, to compensate for an expected elongation caused by temperature rise or external load.
Therefore"T "” is usually a negative value.
Note:if no compensation is needed,specified travel is the same as nominal travel.
Table 1.1.2
Actual Travel Actual travel is the axial displacement of the nut relative to the screw shaft.
Mean Travel Mean travelis the linear best fit line of actual. This could be obtained by the leastsquares method. This line represents the tendency of actual travel.
Mean Travel Deviation E Mean travel deviation is the deduction between mean travel and specified travel within travel length.
Travel Variations e

Travel variations is the coverage of 2 lines drawn parallel to the mean travel.
Maximum width of variation within the travel length.
Actual width of variation for the length of 300mm taken anywhere within the travel length.
Wobble error, actual width of variation for one revolution (2πt radian)
Table 1.1.2
Table 1.1.3
Table 1.1.3


Table 1.1.2 Mean Travel Deviation (±E) and Travel Variation (e) (JIS B 1192)

Grade C0 C1 C2 C3 C5 C7 C10
Travel Length (mm) Over Incl. ±E e ±E e ±E e ±E e ±E e e e
100 3 3 3.5 5 5 7 8 8 18 18 ±50/300mm ±210/300mm
100 200 3.5 3 4.5 5 7 7 10 8 20 18
200 315 4 3.5 6 5 8 7 12 8 23 18
315 400 5 3.5 7 5 9 7 13 10 25 20
400 500 6 4 8 5 10 7 15 10 27 20
500 630 6 4 9 6 11 8 16 12 30 23
630 800 7 5 10 7 13 9 18 13 35 25
800 1000 8 6 11 8 15 10 21 15 40 27
1000 1250 9 6 13 9 18 11 24 16 46 30
1250 1600 11 7 15 10 21 13 29 18 54 35
1600 2000 18 11 25 15 35 21 65 40
2000 2500 22 13 30 18 41 24 77 46
2500 3150 26 15 36 21 50 29 93 54
3150 4000 30 18 44 25 60 35 115 65
4000 5000 52 30 72 41 140 77
5000 6300 65 36 90 50 170 93
6300 8000 110 60 210 115
8000 10000 260 140
10000 12500 320 170

Table 1.1.3 International standard of accuracy grade for ball screw

Grade C0 C1 C2 C3 C5 C7 C10
3.5 5 7 8 18 50 210
2.5 4 5 6 8



1-1-2 Axial Play

Axial play of WANGONG's precision ball screw is shown below:

Table 1.1.4 Classification of Axial Play

Grade P0 P1 P2 P3 P4
Axial Play Yes No No No No
Preload No No Light Medium Heavy

Excessive preload increases the friction torque and generates heat which wll reduce the life expectancy. However, insufficient preload will reduce stifness and increase the possibility of lost motion. WANGONG recommends that the preload applied on CNC machine tools should not heavier than 8% of the dynamic load; 5% for industrial automation X-Y table.

Table 1.1.5 The reference spring force of (P2)

Model No. Spring Force (Kg) Single Nut Spring Force(Kg) Double Nut
1605 0.1~0.3 0.3~0.6
2005 0.1~0.3 0.3~0.6
2505 0.2~0.5 0.3~0.6
3205 0.2~0.5 0.5~0.8
4005 0.2~0.5 0.5~0.8
2510 0.2~0.5 0.5~0.8
3210 0.3~0.6 0.5~0.8
4010 0.3~0.6 0.5~0.8
5010 0.3~0.6 0.8~1.2
6310 0.6~1.0 0.8~1.2
8010 0.6~1.0 0.8~1.2


Table 1.1.6 Axial Play (Po) Clearance in the Axial Direction of Rolled and Grind Ball Screw

Nominal Diameter Rolled Ball Screw Clearance in the Axial Direction (max.) Ground Ball Screw Clearancein the Axial Direction (max.)
Φ04~Φ14 miniature ball screw 0.05 0.015
Φ15~Φ40 middle size of ball screw 0.08 0.025
Φ50~Φ100 big size of ball screw 0.12 0.05

1-1-3 Definition of Mounting Accuracy and Tolerance on Ball Screw

The main items of the mounting accuracy of ball screw are listed in below.
(1) Periphery run-out of the supporting part of the screw shaft to the screw groove.
(2) Concentricity of a mounting portion of the shaft to the adjacent ground portion of the screw shaft.
(3) Perpendicularity of the shoulders to the adjacent ground portion of tha screw shaft.
(4) Perpendicularity of the nut flange to the axis of the screw shaft.
(5) Concentricity of the ball nut diameter to the screw groove.
(6) Parallelism of the mounting surface of a ball nut to the screw groove.
(7) Total run-out of the screw shaft to the axis of the screw shaft.
All WANGONG ball screws are manufactured, inspected and guaranteed to be within specifications.

Fig 1.1.2 Mounting Accuracy and Tolerance

1-1-4 Preload Torque
As figure 1.1.3 shown in below, it specified allthe type of preload torque generated by rotating a preloaded ball screw.

Fig 1.1.3 Descriptions of preload torque
